CreateLED Display Signage

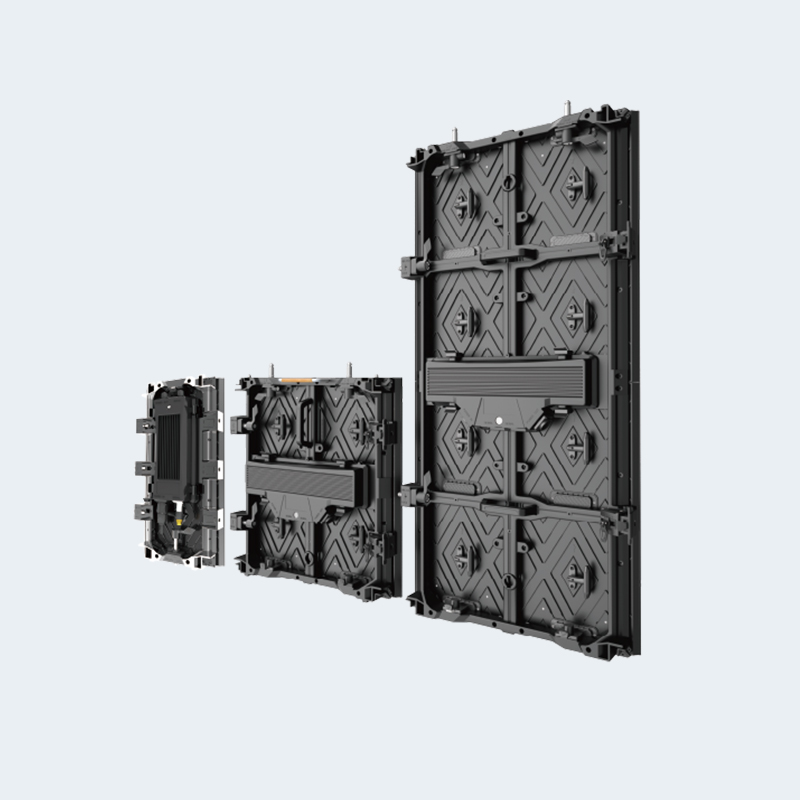

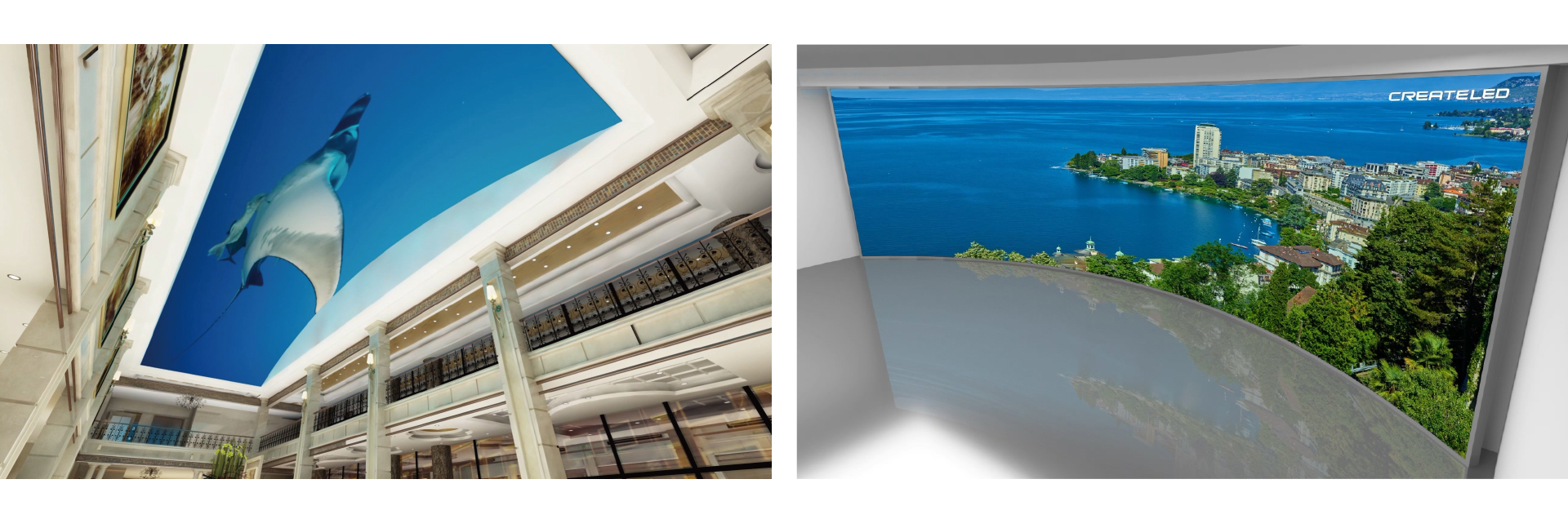

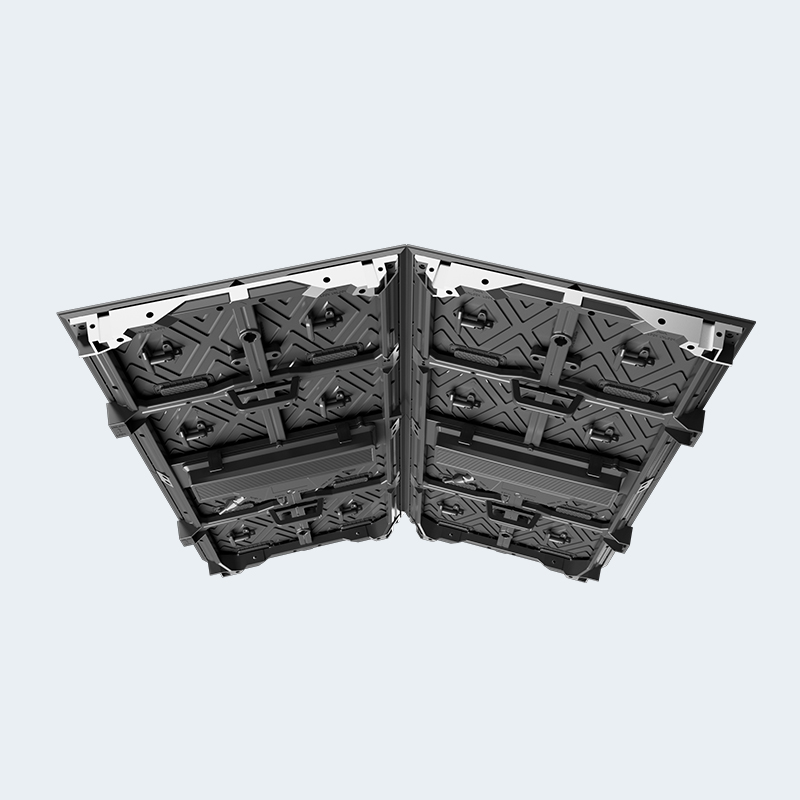

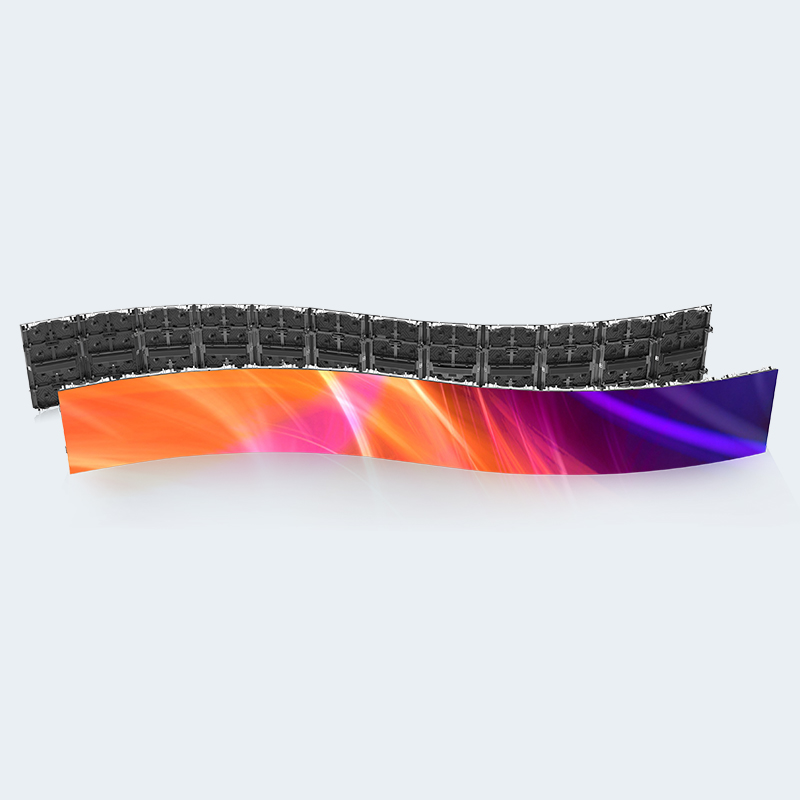

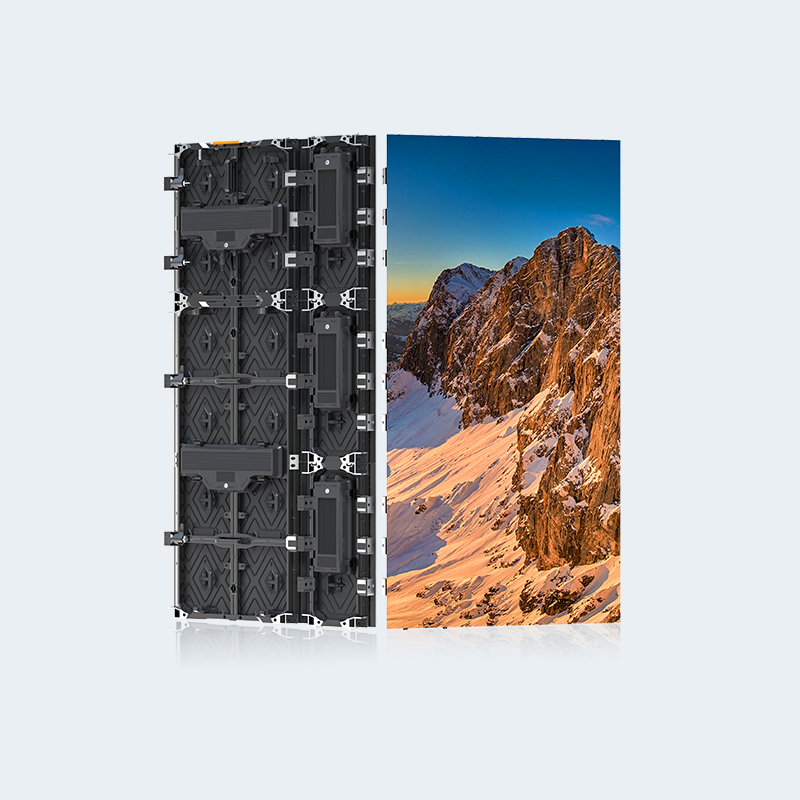

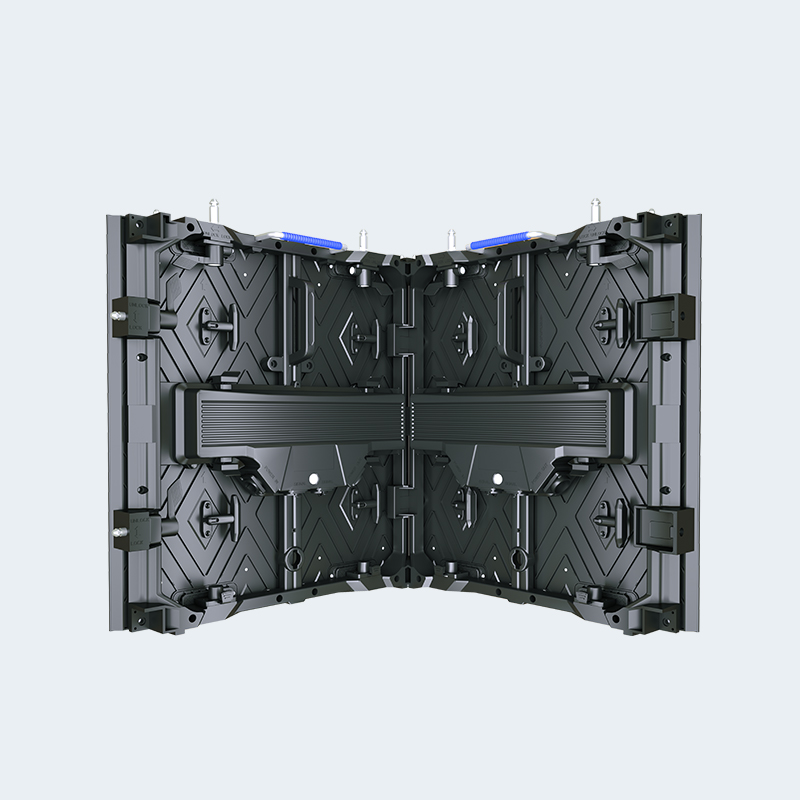

AirMEDIA-D is one of the most outstanding HD indoor & outdoor LED display screen in CreateLED's media family. It has the unique structure and electronic design, What's more, AirMEDIA-D equipes with signal & power backup. Due to it has unique adjustable angle design, So AirMEDIA-D could fulfill multiple-angle splicing. Last but not least, This is able to prevent any enviromental interference. The product can be widely used in the scene of Car Show/Shopping Mall/Stadium/Airport and so on.

AirMEDIA-D(Indoor) Specifcations
AirMEDIA-D(Indoor) AirMEDIA-D 2.6 AirMEDIA-D 2.9 AirMEDIA-D 3.9 AirMEDIA-D 5.2 AirMEDIA-D 7.8
Pixel Pitch 2.6mm 2.9mm 3.9mm 5.2mm 7.8mm
Pixel Configuration 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD
Pixel Density 147,456 pixels/m²
73,728 pixels/panel
112,896 pixels/m²
56,448 pixels/panel
65,536 pixels/m²
32,768 pixels/panel
36,864 pixels/m²
18,432 pixels/panel
16,384 pixels/m²
8,192 pixels/panel

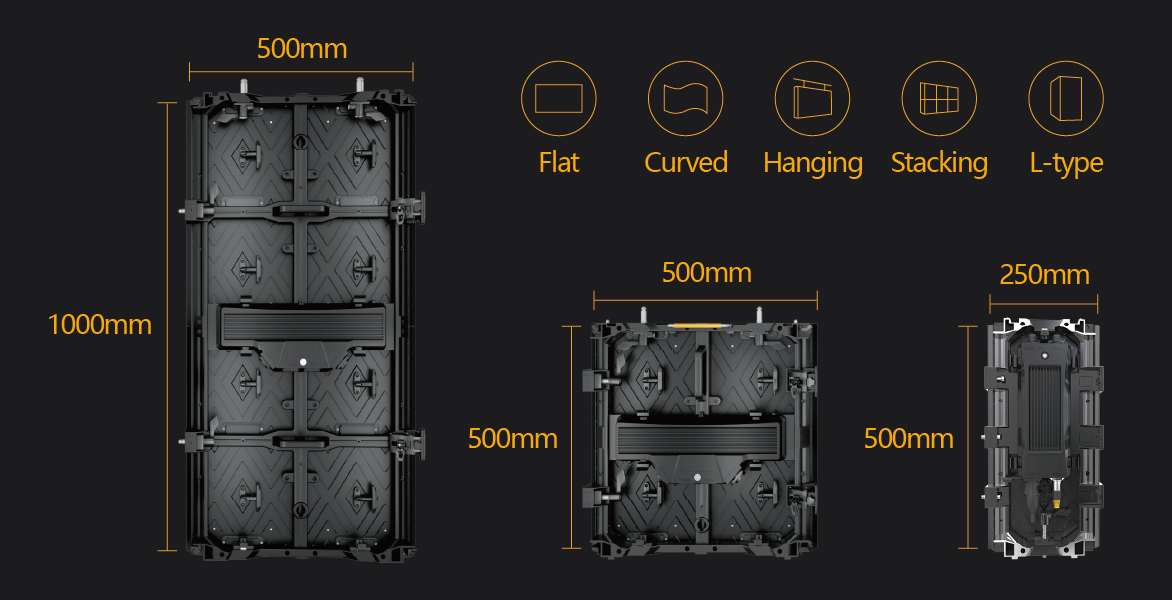

LED Module Dimensions (mm) 250 × 500 250 × 500 250 × 500 250 × 500 250 × 500
Panel Dimensions (W × H × D) (mm) 500 × 1000 × 80 500 × 1000 × 80 500 × 1000 × 80 500 × 1000 × 80 500 × 1000 × 80
No.of Modules Per Panel (W × H) 2 × 2 2 × 2 2 × 2 2 × 2 2 × 2
Physical Resolution of Module (W × H) 96 × 192 84 × 168 64 × 128 48 × 96 32 × 64
Physical Resolution of Panel (W × H) 192 × 384 168 × 336 128 × 256 96 × 192 64 × 128
Weight Per Panel 11 kg/panel 10.8 kg/panel 10.7 kg/panel 10.6 kg/panel 10.5 kg/panel
AirMEDIA-D(Outdoor) Specifcations
AirMEDIA-D(Outdoor) AirMEDIA-D 2.9 AirMEDIA-D 3.9 AirMEDIA-D 4.8 AirMEDIA-D 5.2 AirMEDIA-D 6.2 AirMEDIA-D 7.8 AirMEDIA-D 10.4
Pixel Pitch 2.9mm 3.9mm 4.8mm 5.2mm 6.25mm 7.8mm 10.4mm
Pixel Configuration 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD 3-in-1 SMD
Pixel Density 112,896 pixels/m²
56,448 pixels/panel
65,536 pixels/m²
32,768 pixels/panel
43,264 pixels/m²
21,632 pixels/panel
36,864 pixels/m²
18,432 pixels/panel
25,600 pixels/m²
12,800 pixels/panel
16,384 pixels/m²
8,192 pixels/panel
9,216 pixels/m²
4,608 pixels/panel
LED Module Dimensions (mm) 250 × 500 250 × 500 250 × 500 250 × 500 250 × 500 250 × 500 250 × 500
Panel Dimensions (W × H × D) (mm) 500 × 1000 × 80 500 × 1000 × 80 500 × 1000 × 80 500 × 1000 × 80 500 × 1000 × 80 500 × 1000 × 80 500 × 1000 × 80
No.of Modules Per Panel (W × H) 2 × 2 2 × 2 2 × 2 2 × 2 2 × 2 2 × 2 2 × 2
Physical Resolution of Module (W × H) 84 × 168 64 × 128 52 × 104 48 × 96 40 × 80 32 × 64 24 × 48
Physical Resolution of Panel (W × H) 168 × 336 128 × 256 104 × 208 96 × 192 80 × 160 64 × 128 48 × 96
Weight Per Panel 11.2 kg/panel 11.2 kg/panel 11.2 kg/panel 11.2 kg/panel 11.2 kg/panel 11 kg/panel 11 kg/panel
